Complete Aluminium Backbone Roof Rack System for Mitsubishi Pajero NM-NX LWB (2000-2021)
Pre-Order: ETA End September. A complete aluminium roof rack system designed for Pajero owners who want serious strength without the weight, bulk, or noise.
Unlike many systems, this setup is full aluminium (both the 4mm backbone and platform) making it one of the lightest complete roof rack systems available for the Pajero.
Install video: Click Here
Why This System Stands Out
- Full aluminium system (backbone + platform)

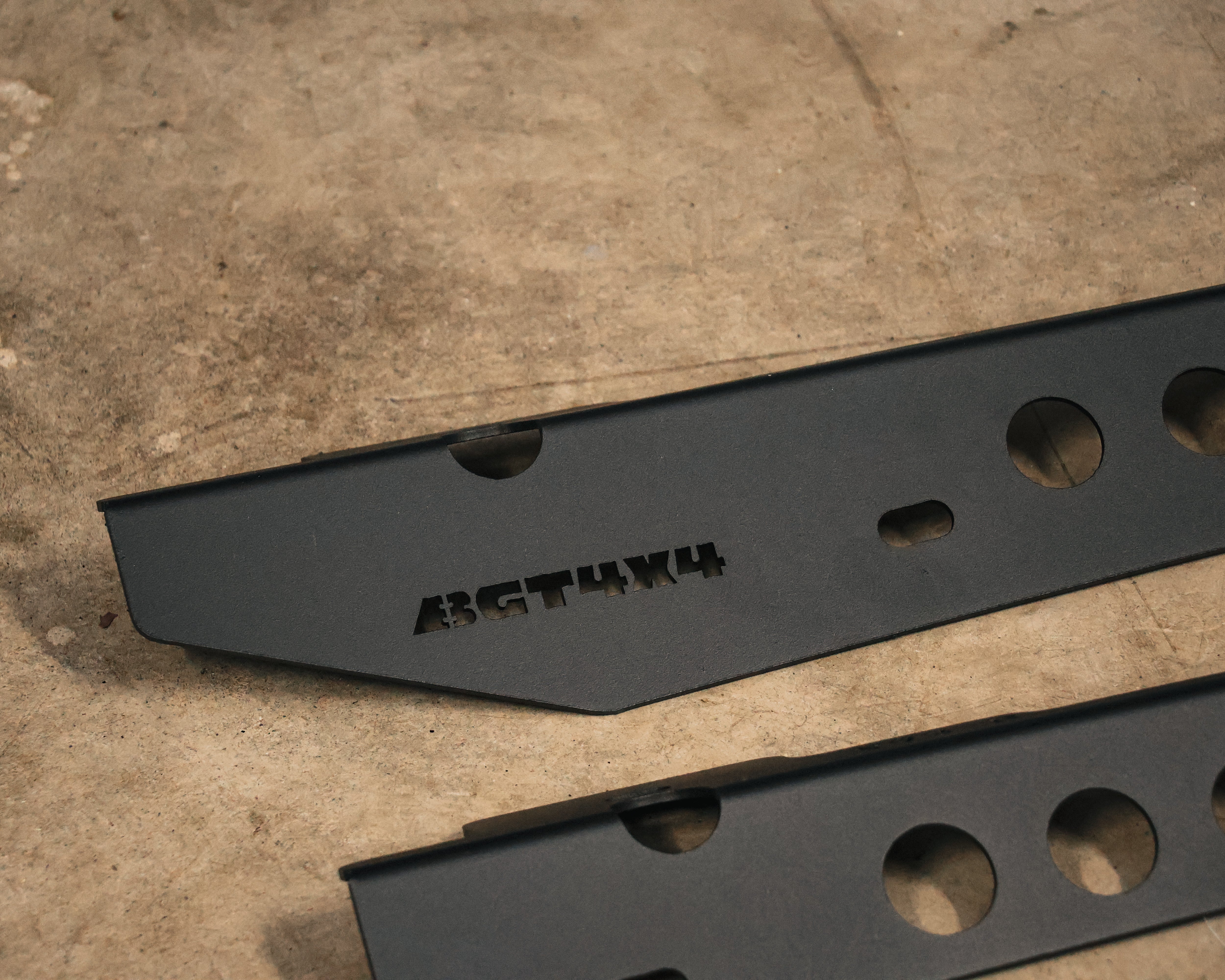

- 4mm aluminium backbone system = extremely light and super strong (most competitors only use 3mm ally, or heavy steel)
- Ultra lightweight setup: just 29kg total
- Excellent value vs similar systems over $2000
- Low-profile design with minimal wind noise
- Fast dispatch from Brisbane
- Tested by Pajero owners with install video guides

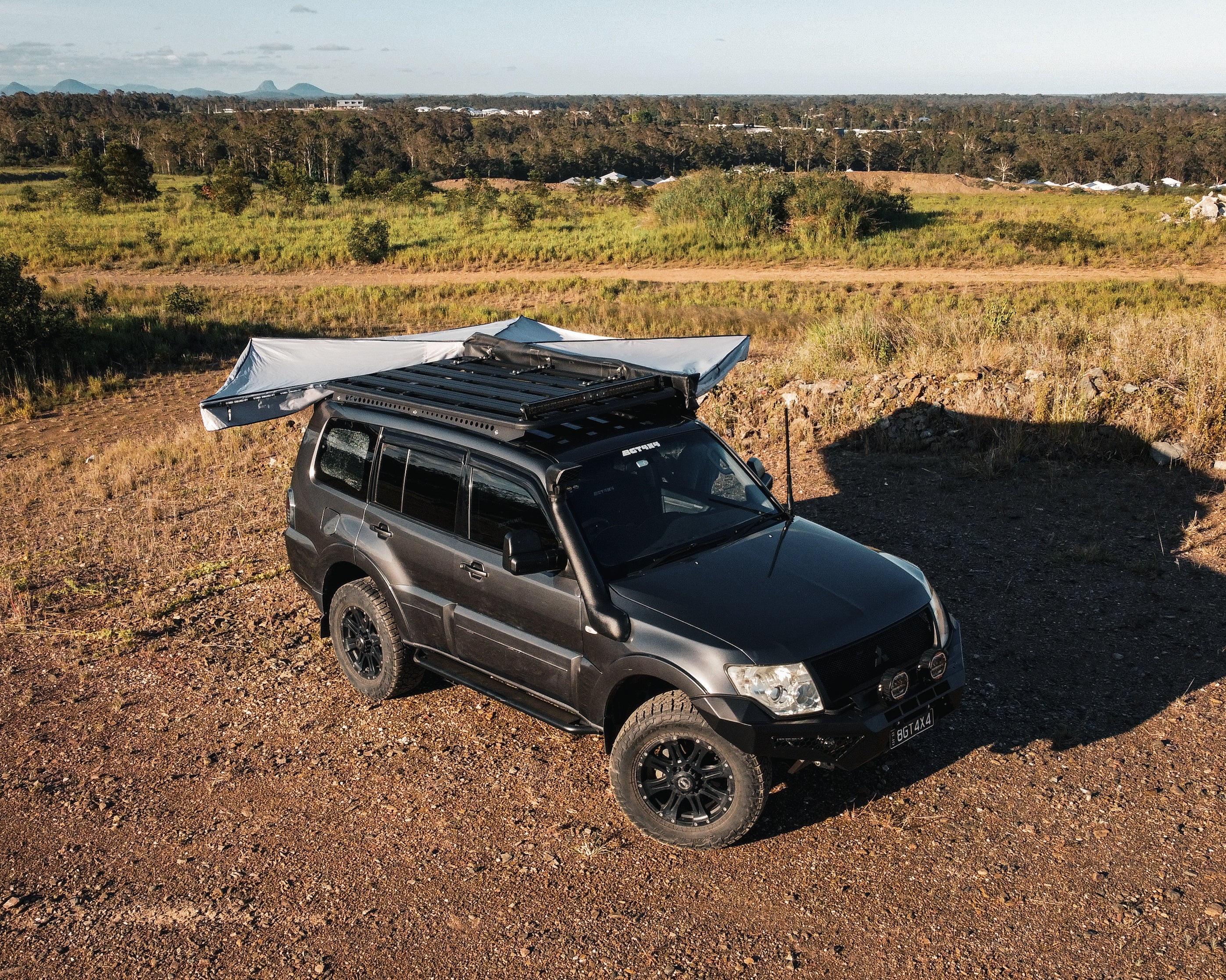

Built for Real Touring
This system uses the Pajero’s factory mounting points to create a strong and stable base for:
- Rooftop tents

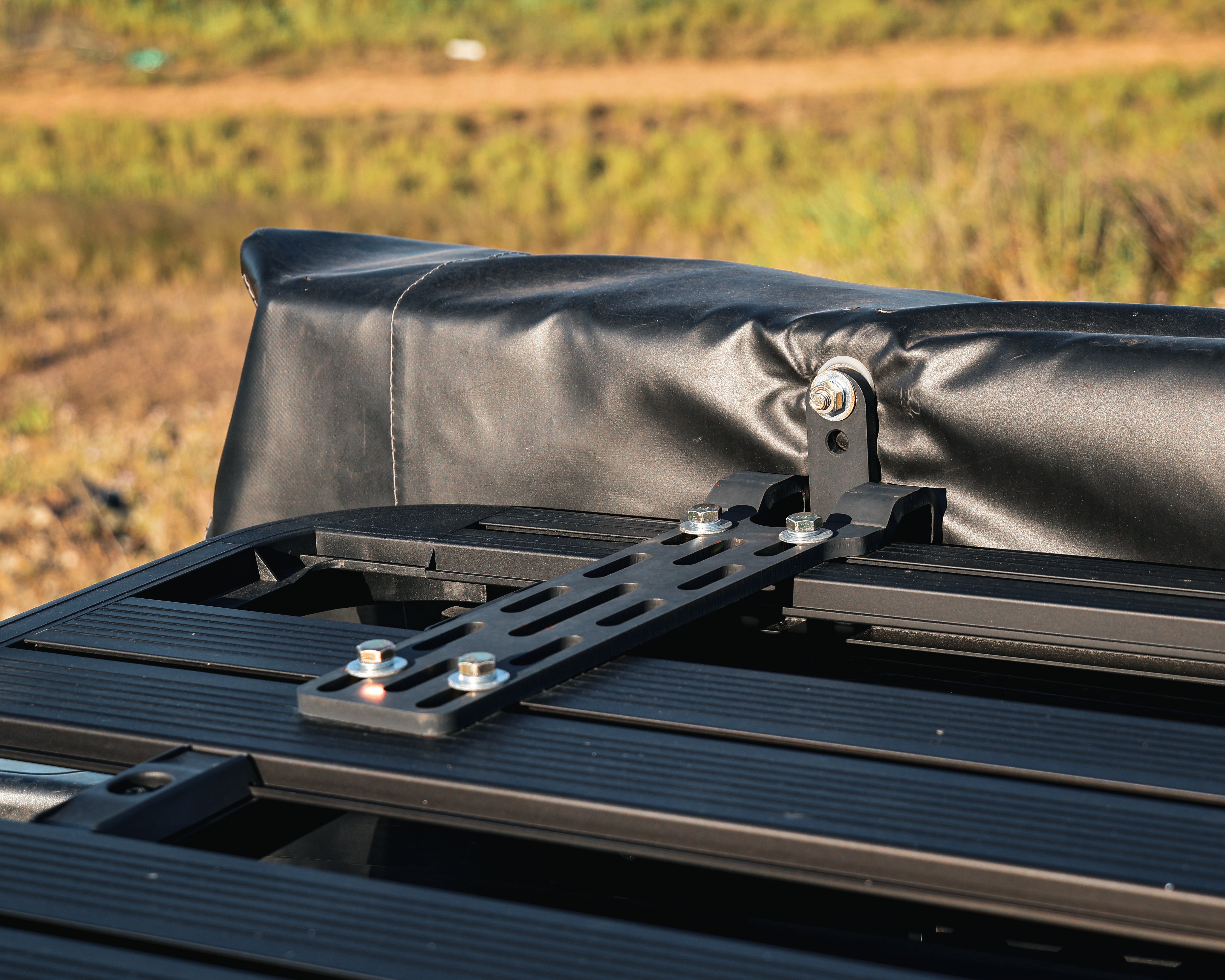

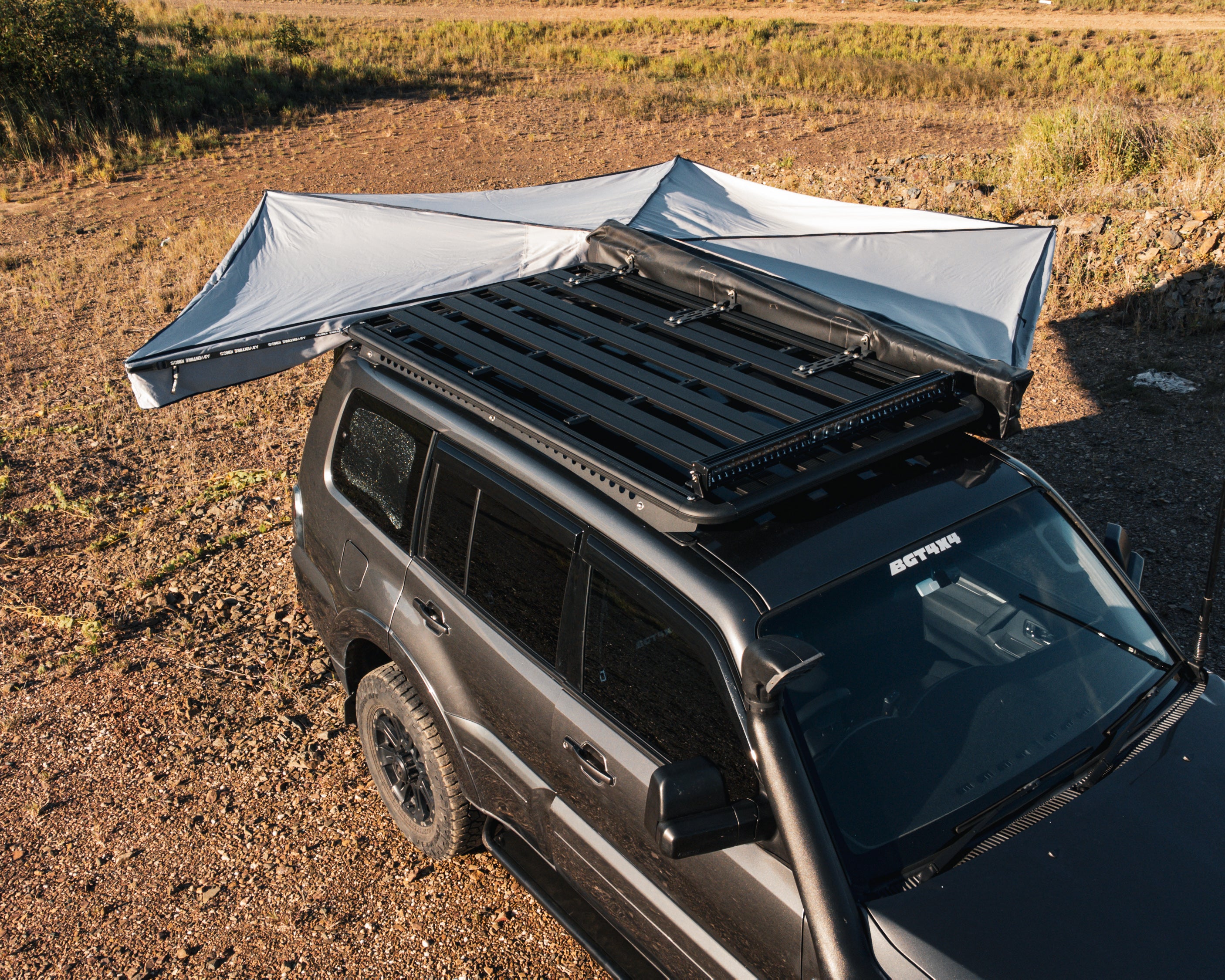

- Awnings
- Recovery gear
- Touring setups

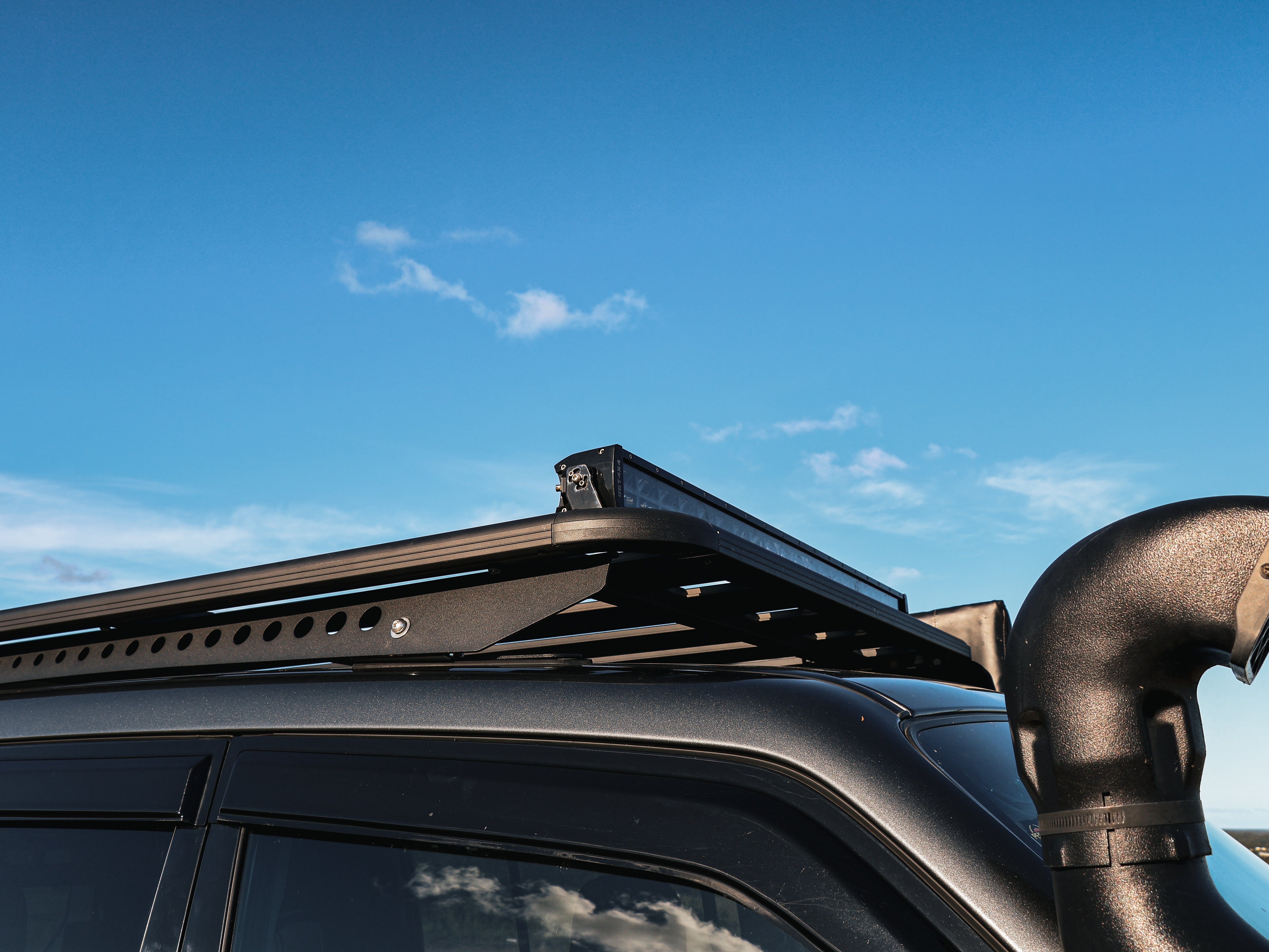

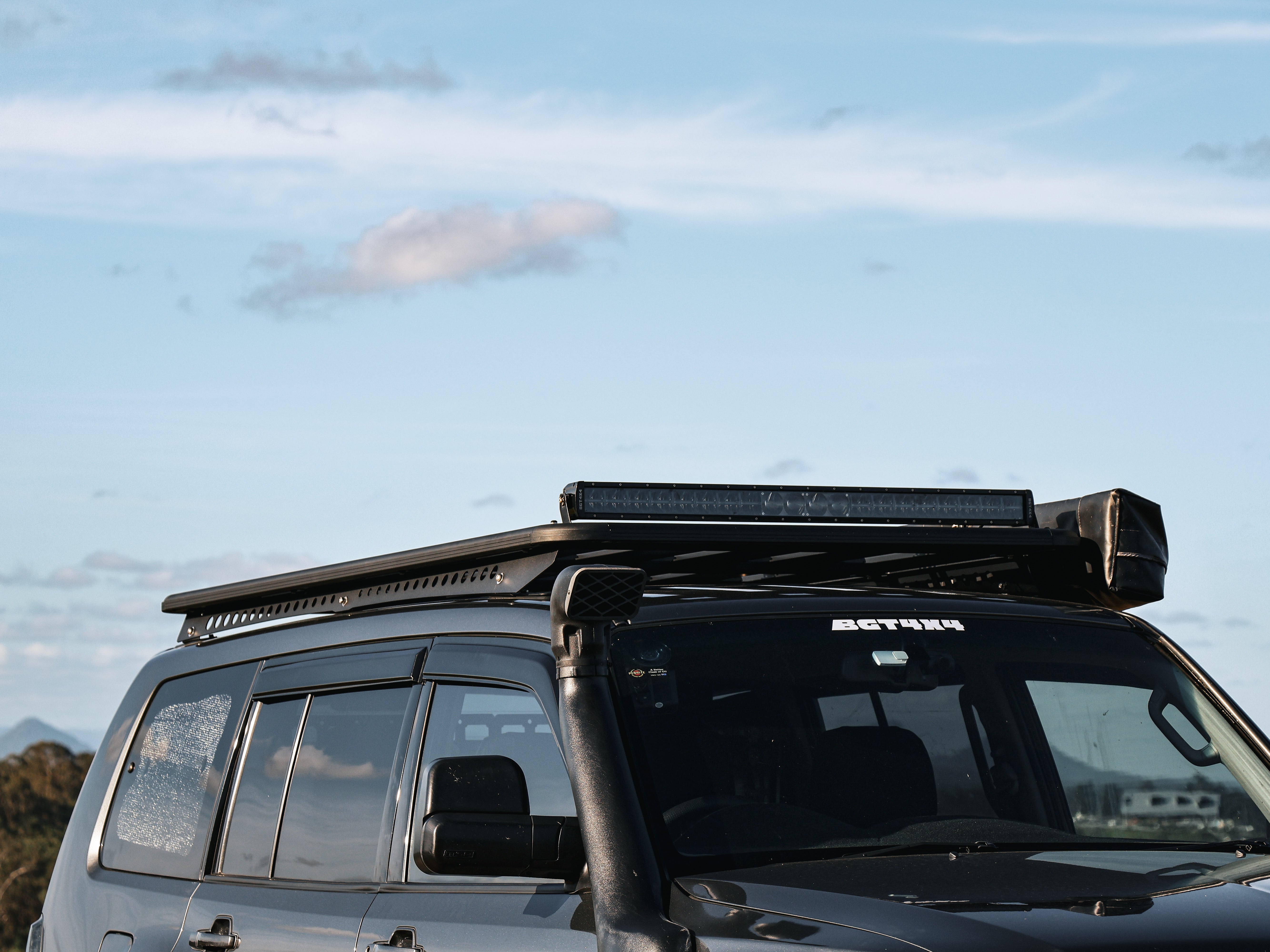

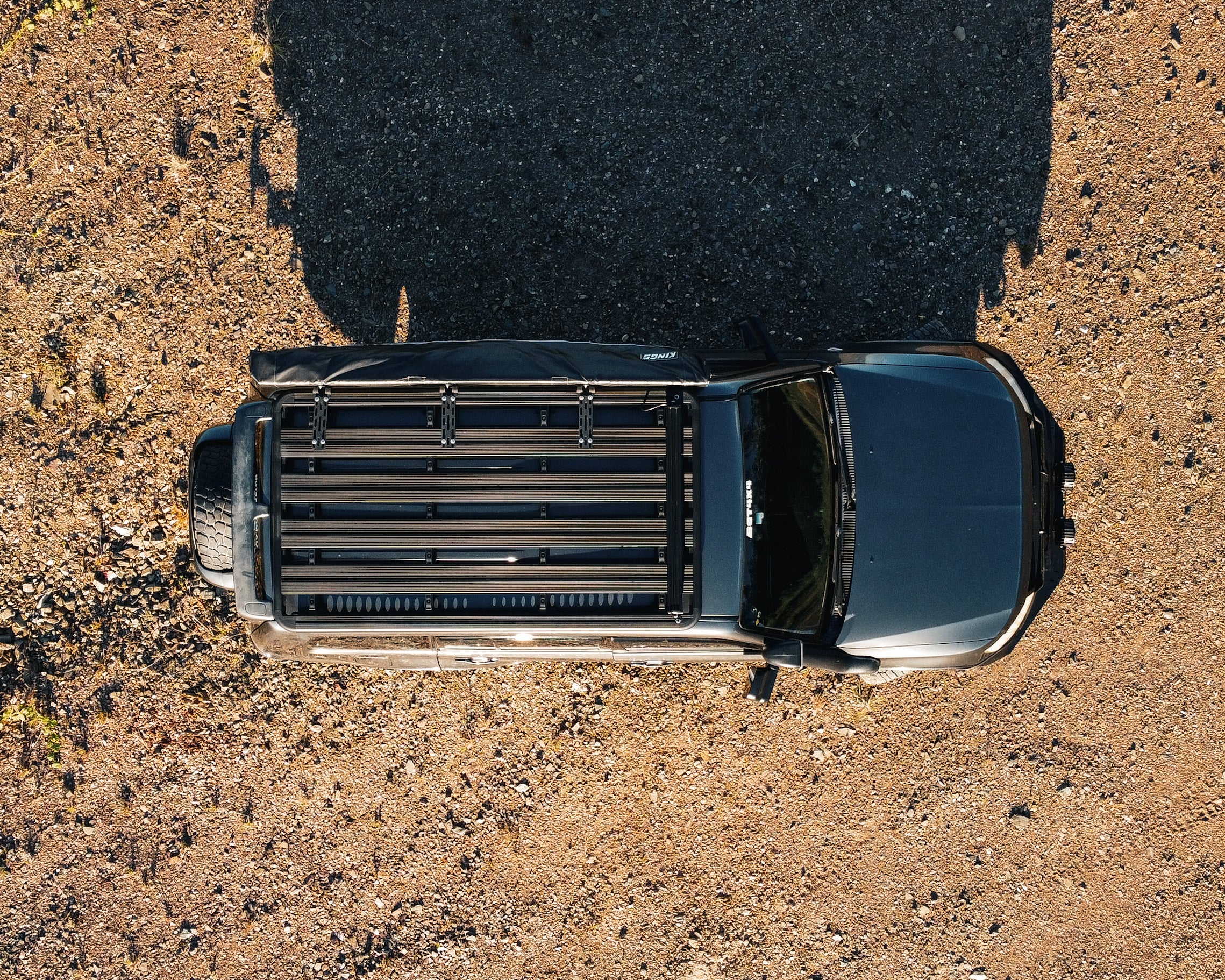

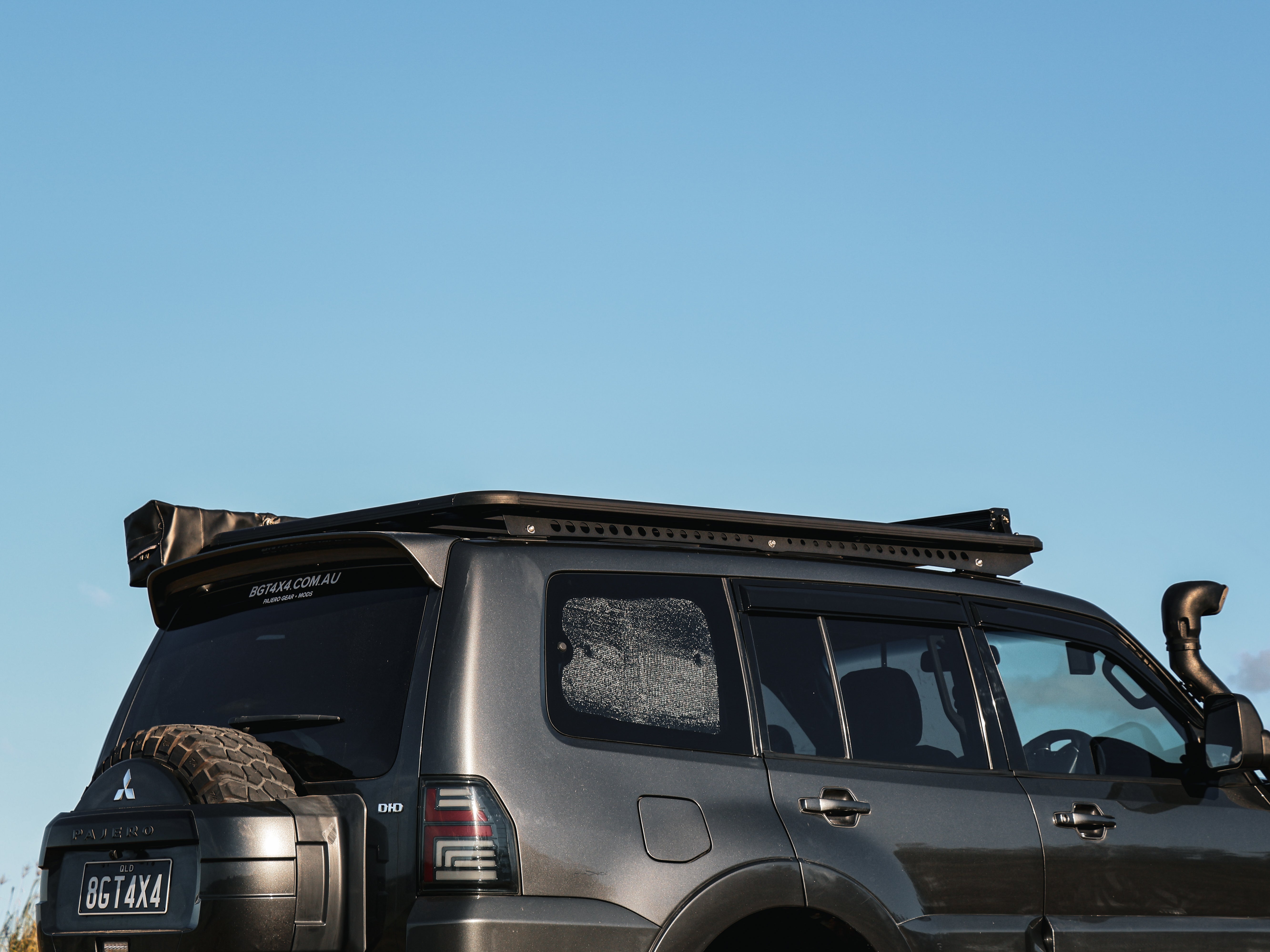

The platform sits low and close to the roof, keeping the vehicle streamlined while maintaining a clean, factory-style look.
Strong Without the Weight
- Platform weight: 25kg
- Backbone weight: 4.1kg
- Total system weight: ~29kg
Designed to handle 200–300kg, giving you peace of mind well beyond the Pajero’s 100kg roof limit.
Simple Installation
- No drilling required for Gen 4 Pajeros with factory roof rails
- Mounts directly to factory points (2006–2021 models)
- Step-by-step installation video guides available on YouTube
Gen 3 and 4 models without factory roof rails will require a different fitting method. A complete guide is available on YouTube for this also.
Complete Kit
Everything you need, ready to install:
- Aluminium backbone system
- 220 x 125cm 4mm aluminium platform
- Stainless steel hardware
- Access to install video guides
Specifications
- Rack size: 220 x 125cm
- Platform weight: 25kg
- Backbone weight: 4.1kg
- Height (Middle Roof to top of backbone 7.7cm)
- Height (Middle Roof to top of platform 11.5cm)
Packaged Specs
Delivered disassembled in compact packaging to reduce freight costs:
- Platform: 27kg - 232 x 27 x 15cm
- Backbone: 8kg - 229 x 20 x 14cm

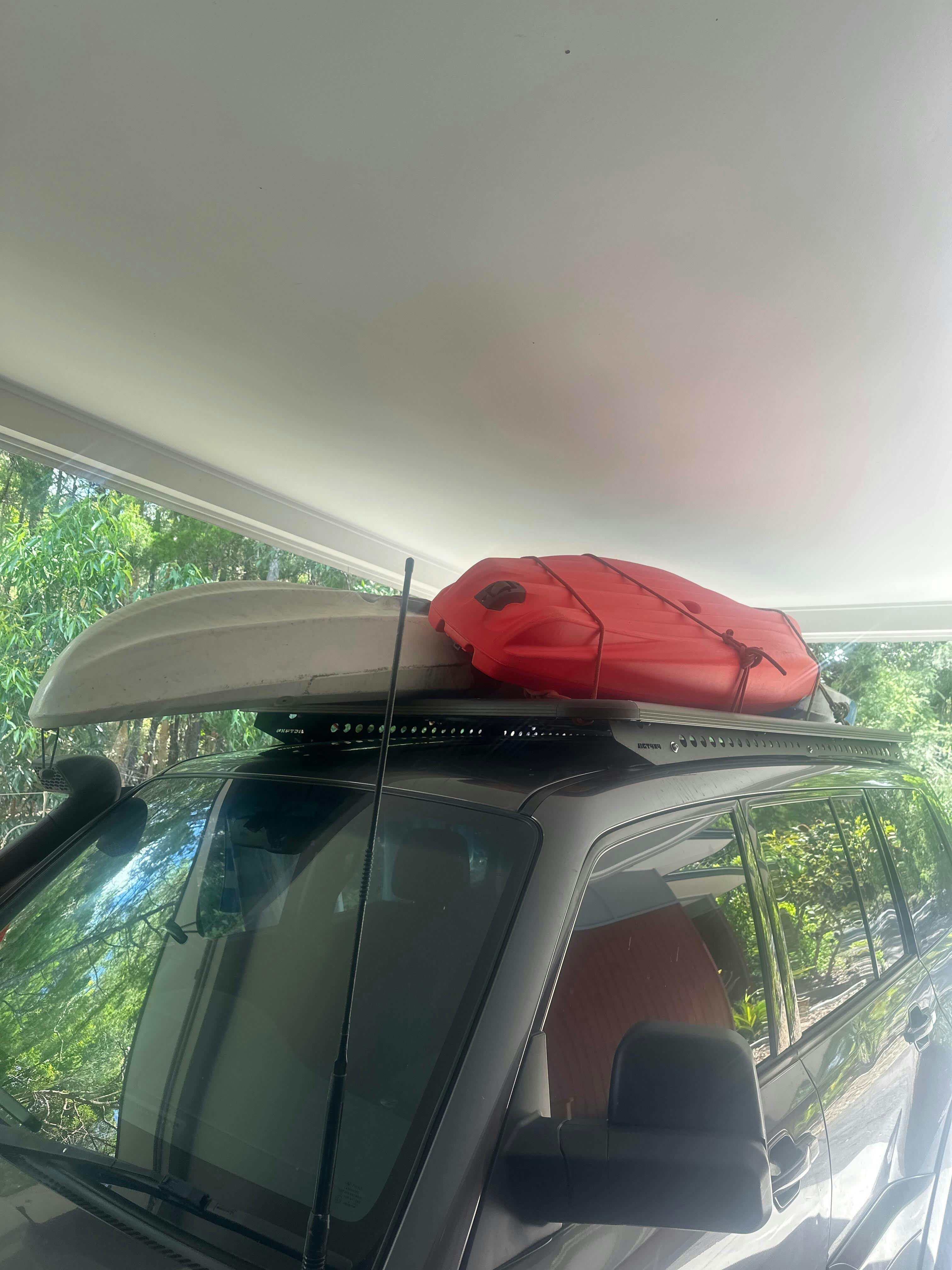

The rack is easy enough to install. The T slots should make it easy to tie down stuff, although there are plenty of tiedown options on the current rack.
An aluminium base rack would be better than the steel for weight.
Awesome Nav, load her up! Thanks for the review, enjoy!

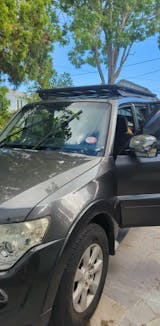

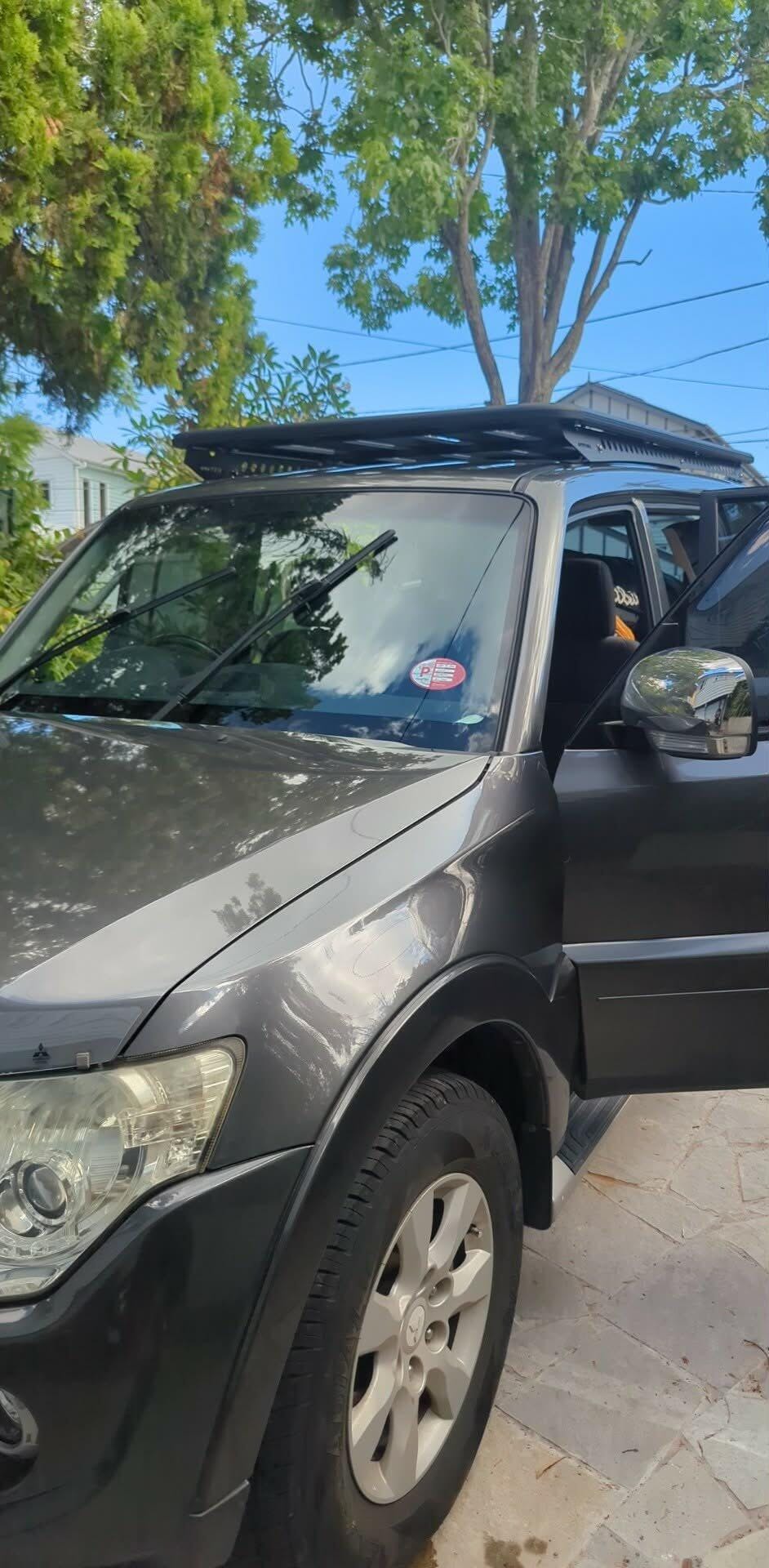

Solid platform with all parts fitting and accounted for. Preexisting video on the BGT4X4 were easy enough to follow. Dewald was able to offer quick clarification after I had some questions throughout the install. Could probably complete install in 1 day with 2 people or 2 days by yourself.
Legend thanks Luke enjoy!
Very easy to put together and the install was easy enough with the videos available.
Well worth the investment.
Very happy with the product.
Great to hear cheers Luke!
Does it come with the shade attachment on the side?

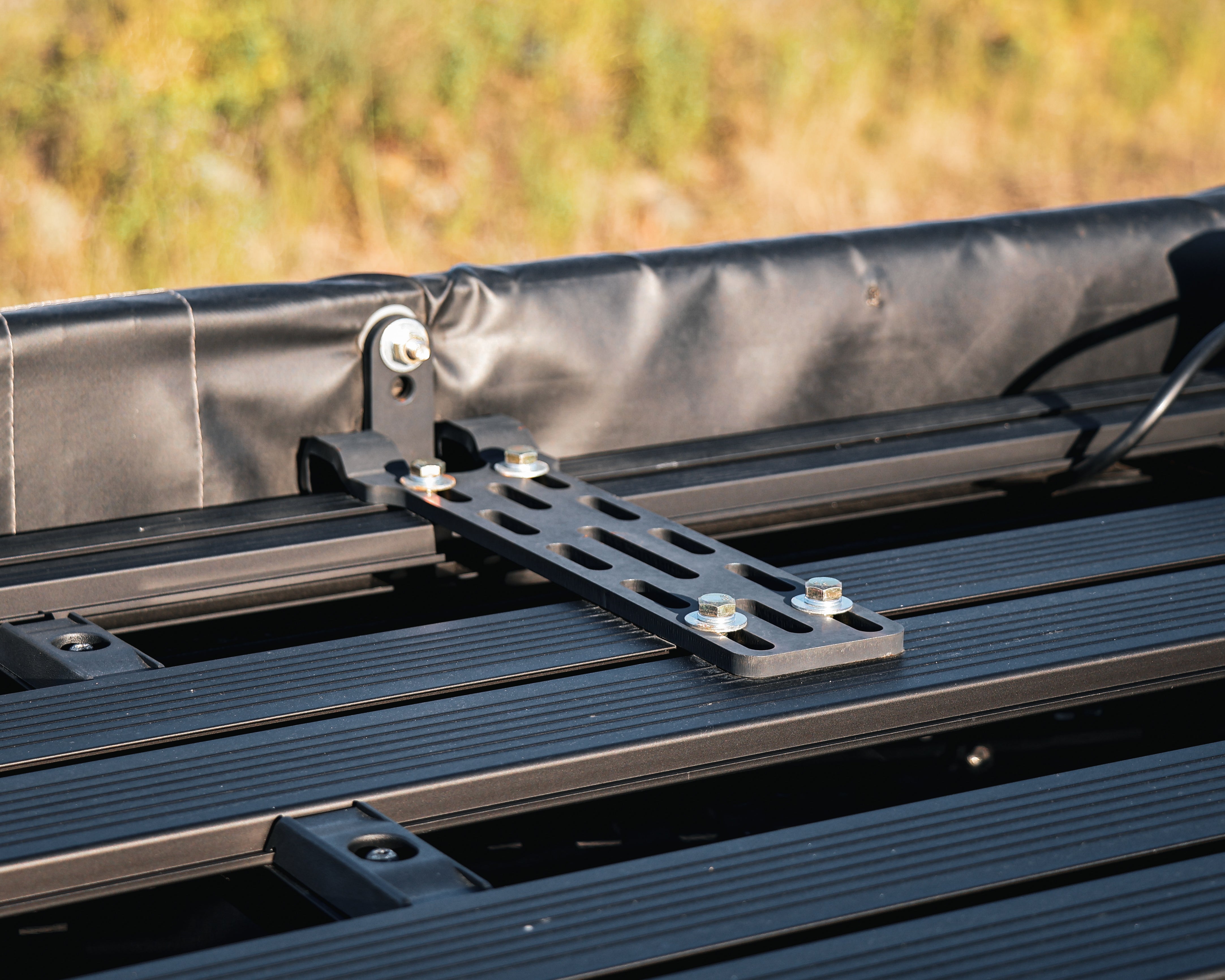

Hey David, the awning brackets are a separate purchase item you can buy from other retailers.
